Vero Motion Legend Motion System

Estimated total lead time: 5–8 weeks. Includes approximately 1–2 weeks for manufacturing plus 4–6 weeks for the included standard sea shipping. Available to order; not a ready-to-ship stock item. Timing is an estimate, not a guaranteed delivery date.

Free standard shipping from Vero within the United States. Available for US delivery only.

The Vero Motion Legend platform adds longitudinal surge, sway and traction-loss movement to a motion cockpit. Choose the upgrade base for an existing compatible Champion system, or a complete GT or GTR configuration for six degrees of freedom.

Choose your version

• Legend Add-On: Motion-base upgrade with surge and traction-loss actuators. Requires a separate compatible Champion system. Champion upper actuators are not included.
• Legend GT: Legend base plus 4 Champion GT actuators, with 100 mm upper-actuator stroke and 320 kg system load capacity.
• Legend GTR: Legend base plus 4 Champion GTR actuators, with 150 mm upper-actuator stroke and 800 kg system load capacity.

Motion-base equipment

• 1 surge actuator and 2 traction-loss actuators: 180 mm stroke, 250 mm/s speed and 80 kg rated force per actuator.
• Aluminum-extrusion motion base.
• 1 external controller and 2 internal controllers.
• Emergency-stop button.
• Required assembly and mounting hardware.
• 2 LED strips and 2 rear LED lights.

Installation

Designed to fit most aluminum-extrusion cockpits. Confirm compatibility with your specific cockpit before ordering. The motion base ships assembled; some installation is required.

Software and warranty

• SimHub compatible.
• 3-year manufacturer warranty.

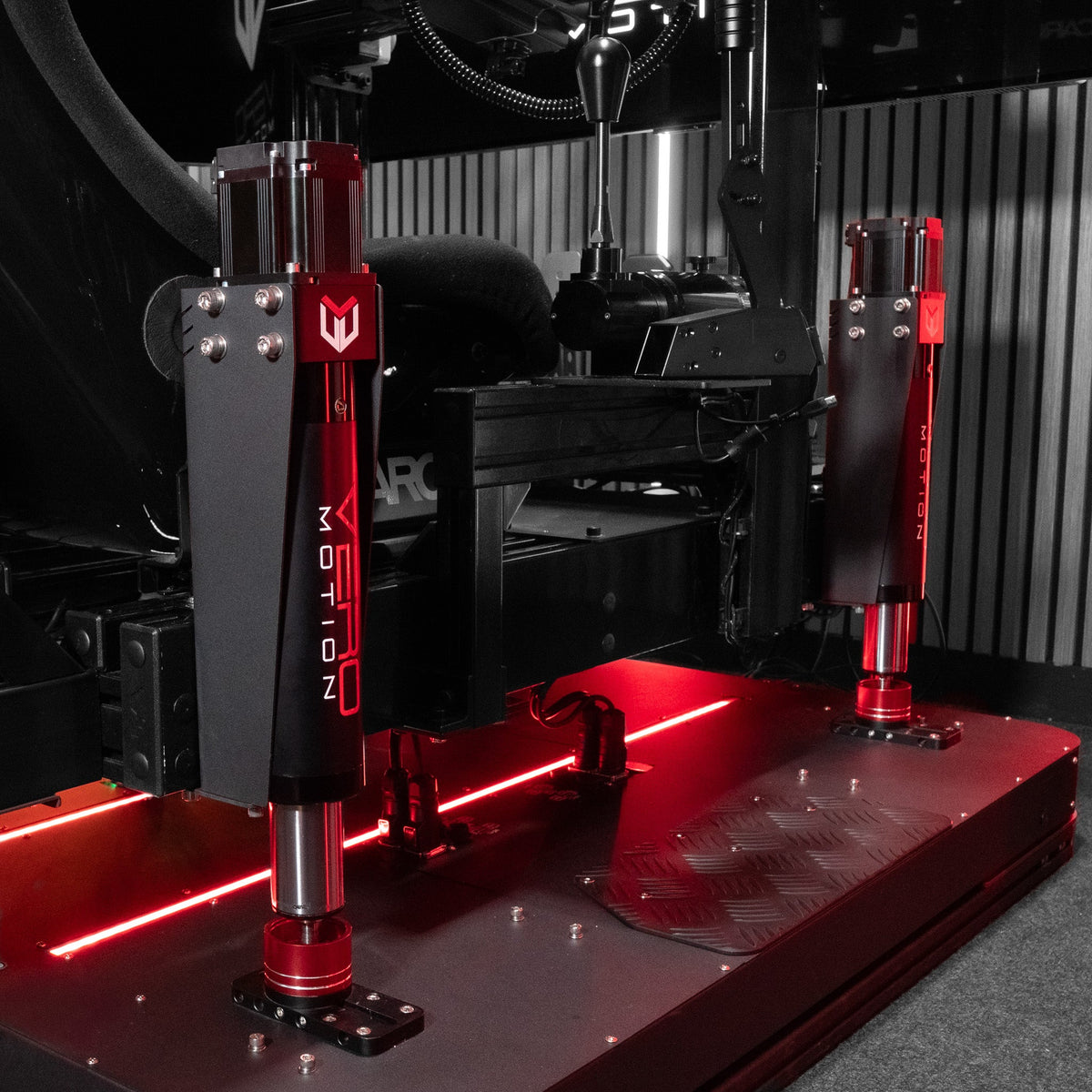

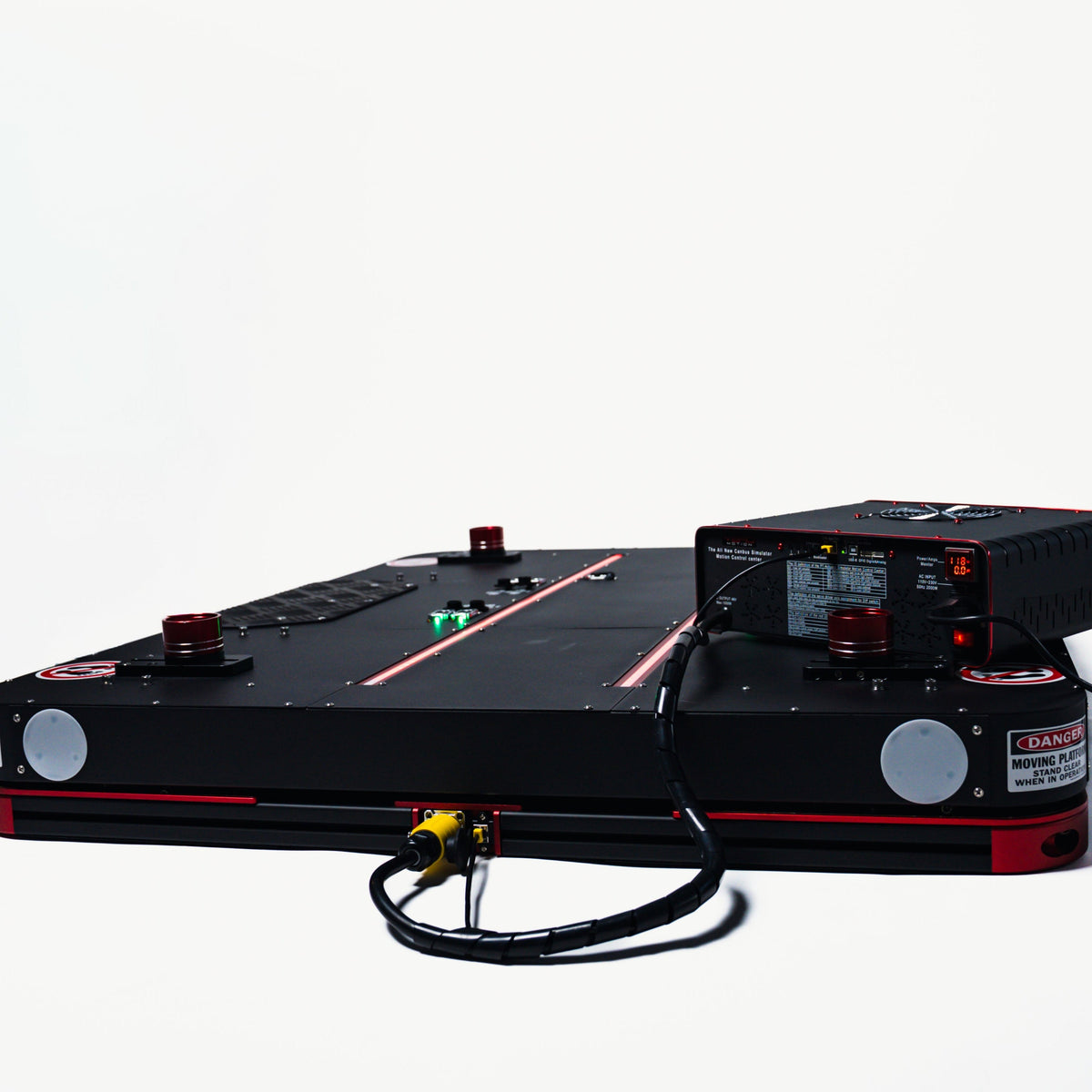

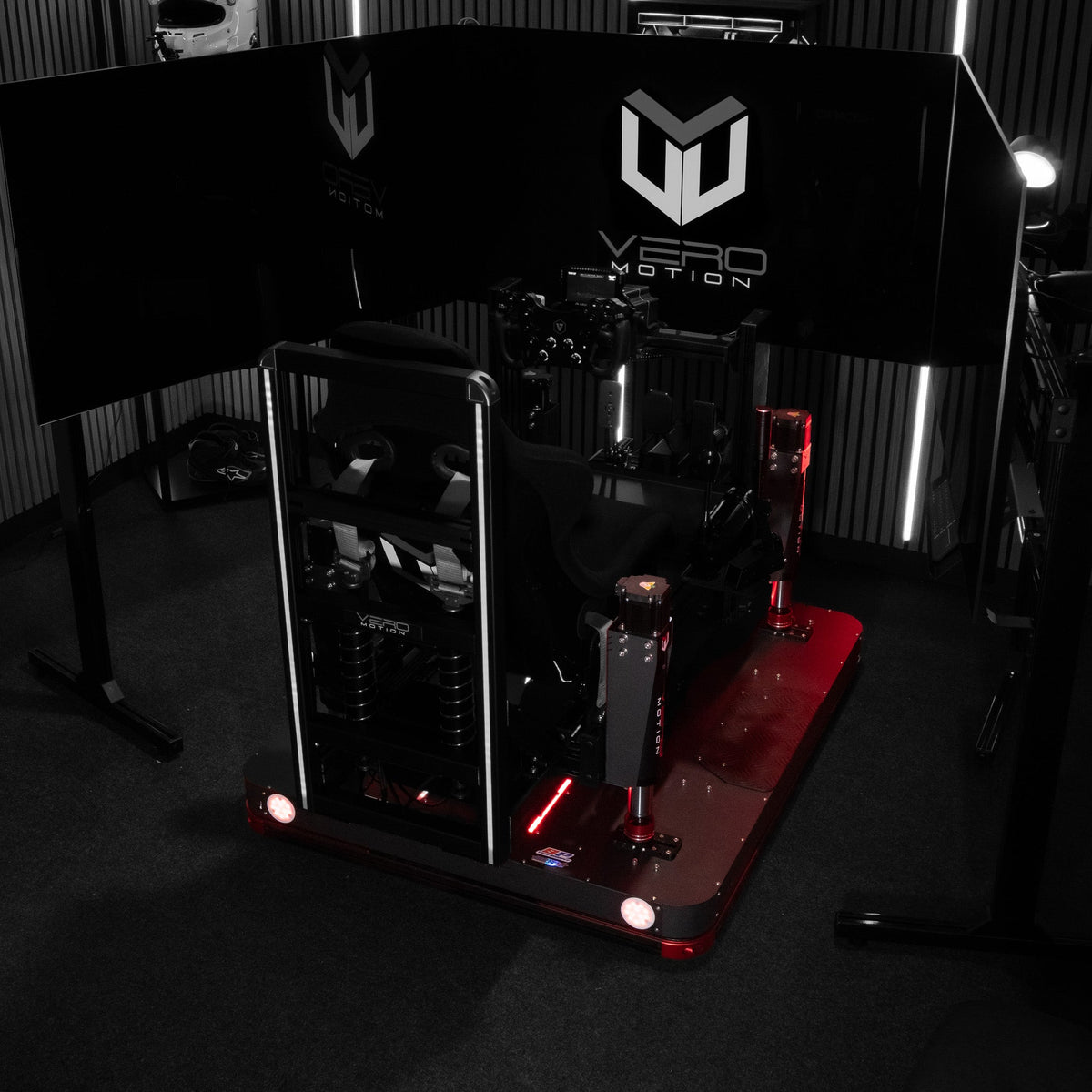

Manufacturer photographs show example installations. Cockpit, seat, controls, displays and other equipment are not included unless specifically listed for the selected configuration.
